Automatic Band Saw

CORMAK BS370SA

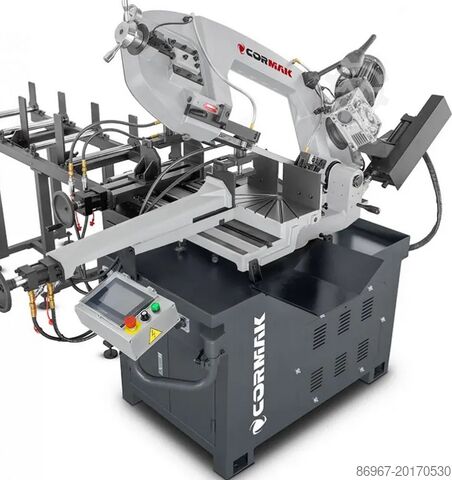

Model CORMAK BS370SA – Modern Automatic Band Saw for Metal

The CORMAK BS370SA model is a modern automatic band saw designed for efficient series cutting of pipes, profiles, and solid materials with various geometries. Its robust construction, full automation, and high cutting accuracy make this machine ideal for use in production plants, tool workshops, and metalworking companies where repeatability and reliability are essential.

Blodpfx Asxiv Hcjfaep
Key Features of the Machine

Automatic cutting cycle: clamping, material feeding, cutting, and arm return are all performed without operator intervention.

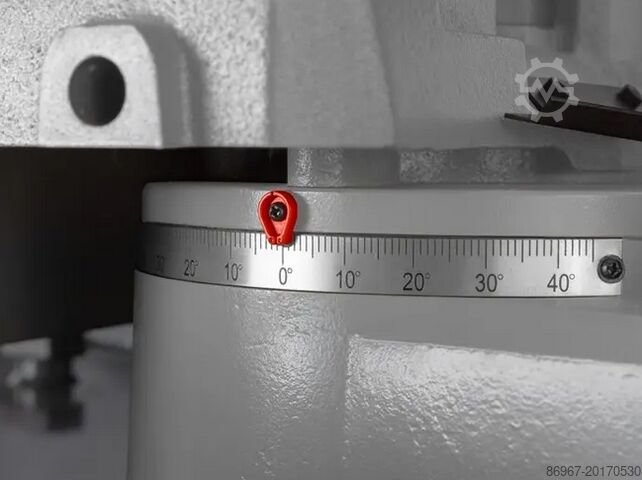

Angle cutting capability across the full working range – up to 45° to the left and 60° to the right.

Inverter-controlled band speed adjustable smoothly between 5–90 m/min.

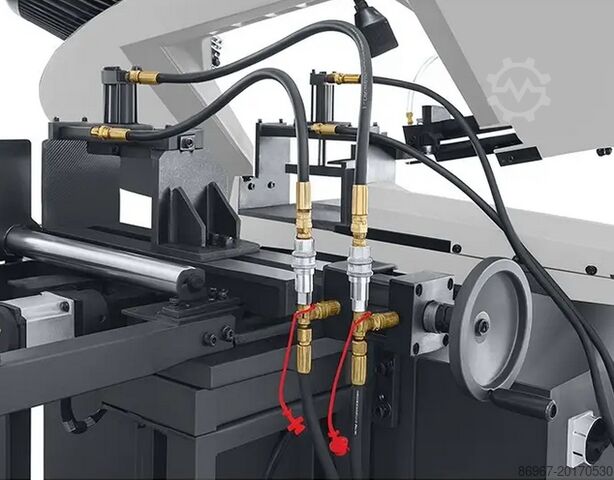

Hydraulic control of the arm and vise, ensuring precision and user comfort.

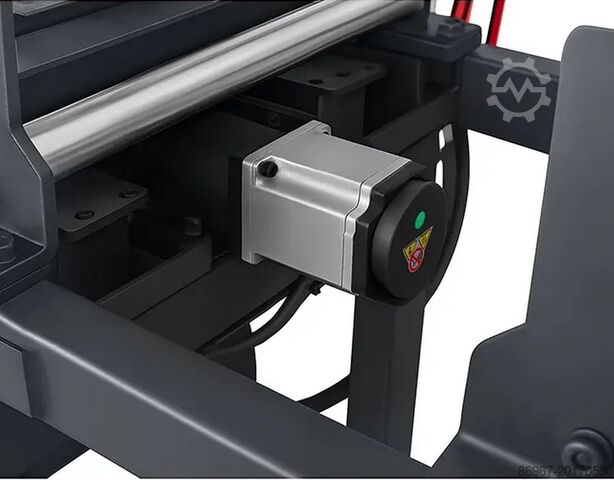

Material feed system equipped with a 2450 mm roller conveyor, 370 mm feed per cycle, and ±0.2 mm accuracy.

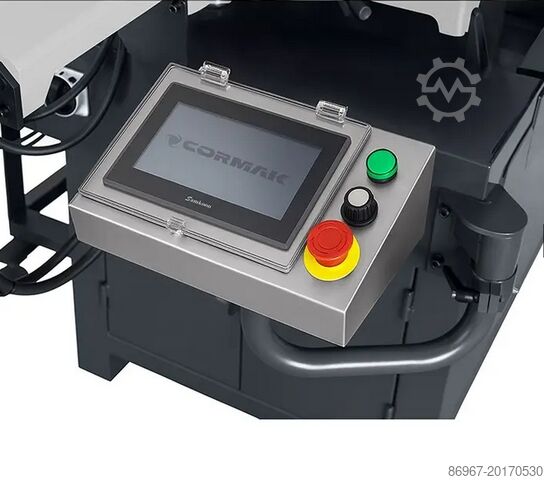

Controller with operator panel: allows programming of cutting parameters, monitoring part quantity, and error signaling.

Construction and Technology

The CORMAK BS370SA band saw is built on a rigid welded frame, ensuring operational stability and vibration reduction. The hydraulic feed and clamping system, precision blade guides, and stepless speed control guarantee high quality and safe operation. The machine is equipped with a roller conveyor to facilitate automatic material feeding.

Precision and Performance

Thanks to high-quality components and modern technical solutions, the CORMAK BS370SA band saw delivers repeatable and precise cuts. Adjustable cutting speed and hydraulic blade pressure ensure long tool life and full control over the machining process.

Applications

This machine is recommended for facilities involved in serial production, processing of steel, aluminum, and non-ferrous metal components. It is especially suitable as a band saw for pipes, profiles, and solid parts in the steel structure, prefabrication, and precision manufacturing industries.

Standard Equipment

Control console on a separate pedestal

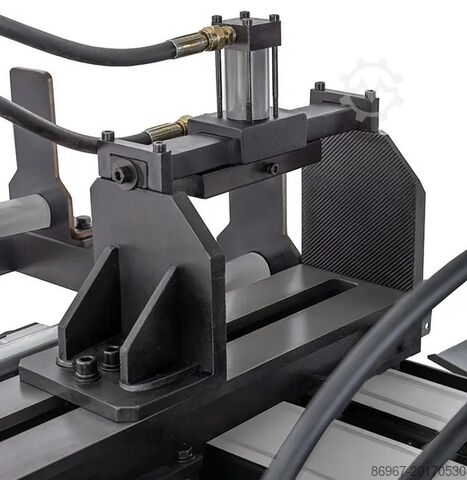

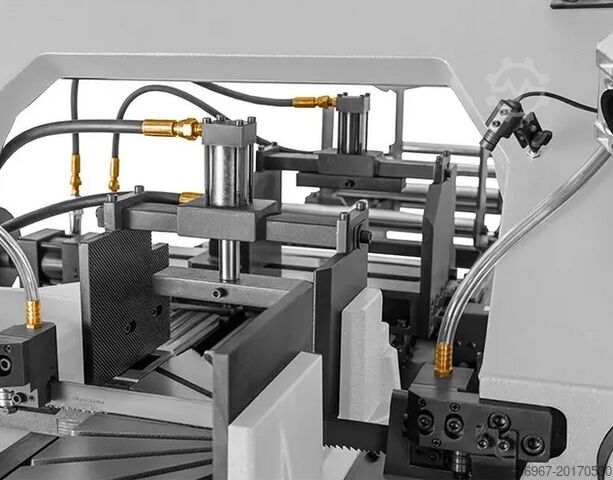

Hydraulic control of the vise and arm

Roller conveyor for automatic material feeding

Arm position memory

Blade cleaning brush

Cooling system with pump

Bimetal band saw blade

CE declaration of conformity and operation manual

Technical Specifications

Main motor power 1.5 kW (400 V)
Hydraulic motor power 0.75 kW (400 V)
Blade dimensions 3160 x 27 x 0.9 mm
Cutting speed (stepless) 5–90 m/min
Saw frame rotation angle Up to 60°

Workpiece Cutting Capacity

Angle Round ● Square ■ Rectangular ▅
90° 270 mm 260 mm 370 x 220 mm
45° 240 mm 180 x 180 mm 240 x 160 mm
60° 160 mm 100 x 100 mm —

Machine Dimensions

Length: 3970 mm

Width: 1850 mm

Height: 1763 mm

Net weight: 770 kg

Gross weight: 925 kg

The machine is also equipped with an additional roller conveyor: Length: 2450 mm
